Specifications

Model Number	TF45032
Weight	80 lbs.
Width	18 in
Height	32 in
Length	72 in
Application	Channelizing Devices
Material	Linear Low-Density Polyethylene
Filled Weight	1,004 lbs
Fill Capacity	130 Gallons
Certified	MASH LCD Test Level 1,2 and 3

Need Help?

Contact our Specialists at (240) 834-6088

Traffix

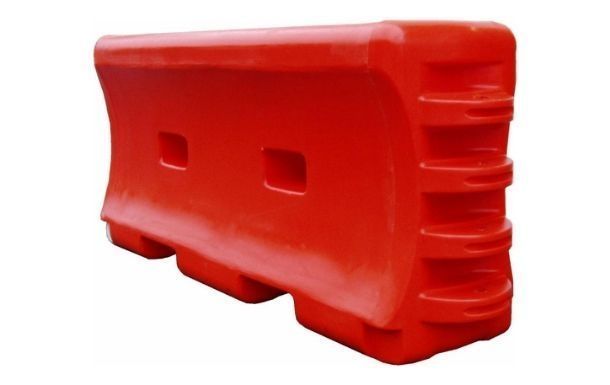

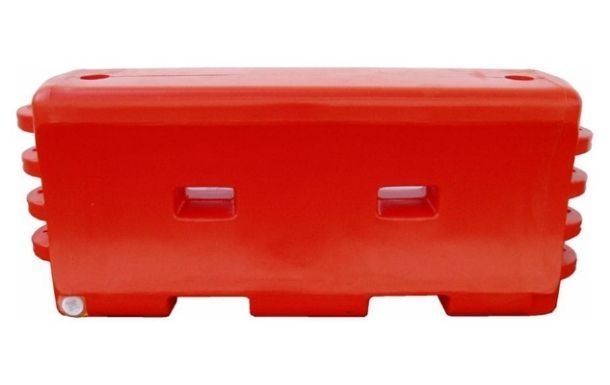

Water Wall Barrier | Water Barrier

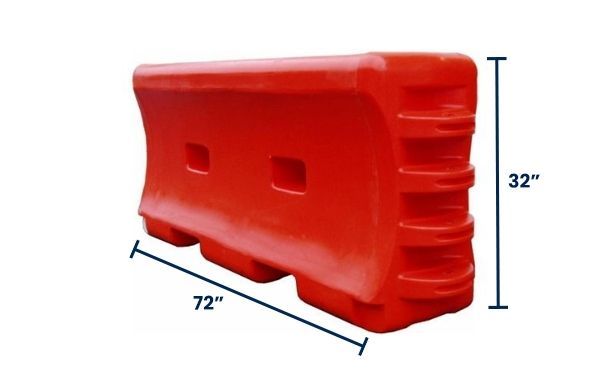

The Water Wall barrier is a water filled barrier built from LDPE. Each unit measures 72in long and 32in high, with a 130 gallon capacity and a filled weight of over 1,000 lbs. Certified to MASH TL-1, TL-2, and TL-3 standards.

In Stock

$350⁰⁰/ ea

Color *None

Orange
White

Add To Cart

Add To Quote

Overview

Water Barrier for High-Speed and Work Zone Applications

This water barrier is designed for traffic control setups where higher levels of impact performance are required.

With MASH TL-1, TL-2, and TL-3 certification as a longitudinal channelizing device and barricade, it can be used across a wide range of roadway conditions, including highways, urban roads, and construction zones.

Barriers can be transported empty to reduce handling weight, then filled on site for stability.

Each water barrier includes a large fill port, and a tamper resistant drain plug for efficient setup and removal.

Water Wall Barrier with Crash-Tested Performance

Use a water wall barrier that meets MASH TL-1, TL-2, and TL-3 requirements, with a flexible design built for impact resistance and adaptable layouts.

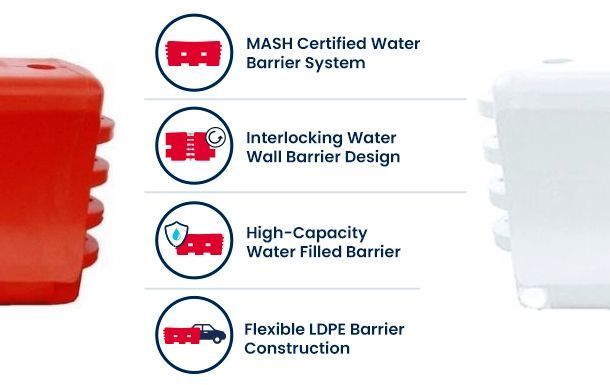

MASH-Certified Channelizing Device

Tested and approved for TL-1, TL-2, and TL-3 applications.
Suitable for highways, roadwork zones, and high-speed traffic areas.
Designed to perform as a longitudinal channelizing device.

Interlocking Barrier Design

Connects using steel pins through reinforced hinge points.
Creates continuous barrier lines without gaps between sections.
Allows up to 30-degree pivot between units for curves and corners.

High-Capacity Water Filled Barrier

Holds up to 130 gallons of water per unit.
Reaches over 1,000 lbs when filled for increased stability.
Designed for transport when empty and filling on site.

Flexible LDPE Construction

Made from linear low-density polyethylene for impact resistance.
Material flexes on impact to reduce cracking and breakage.
Can be patched if damaged instead of fully replaced.

Impact Control and Lane Separation with Water Wall Barriers

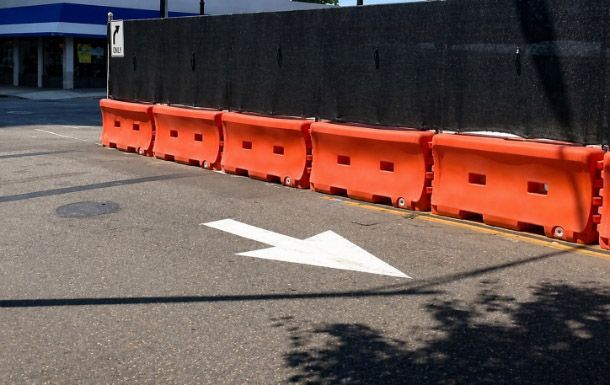

This water wall barrier is commonly used in traffic control setups where separating vehicles from work zones is required.

Its crash tested design allows it to absorb and redirect impact forces, helping reduce damage while maintaining a physical barrier between traffic and restricted areas.

Common applications include:

Highway construction and lane closures
Bridge and infrastructure projects
Perimeter control around workzones

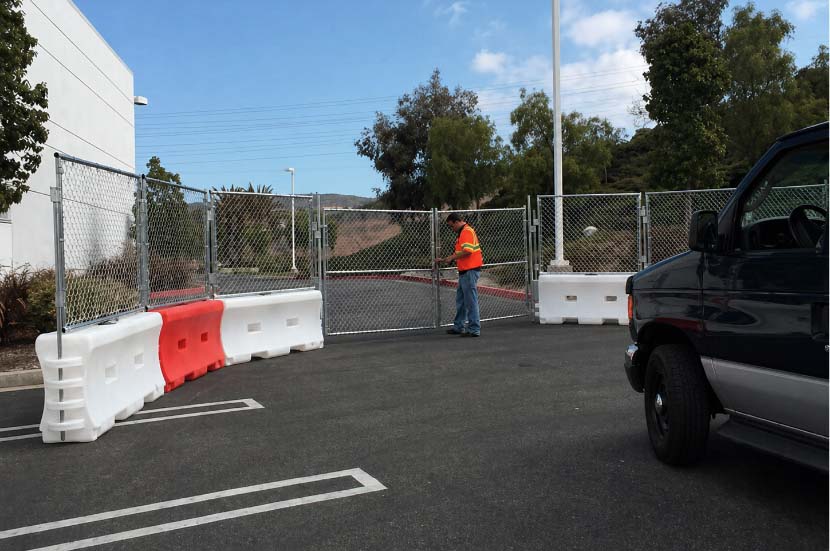

PRO TIP: Add Water Wall Fence Toppers for Increased Height

Pair this water wall barrier with fence toppers to create a taller perimeter system.

Fence toppers attach directly to the barrier and extend height above the 32in profile, making them useful for jobsites that require more controlled access or additional separation between public and restricted areas.

Explore SONCO’s fence topper options to expand your barrier setup.
