Specifications

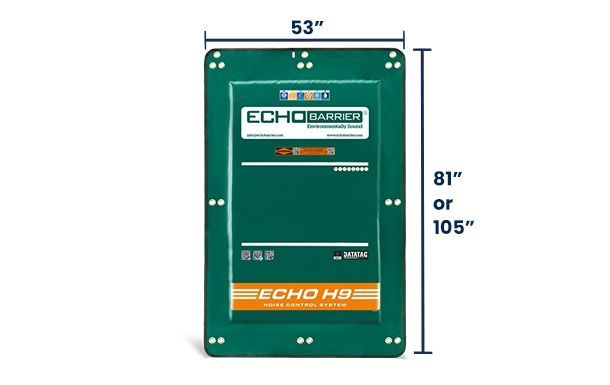

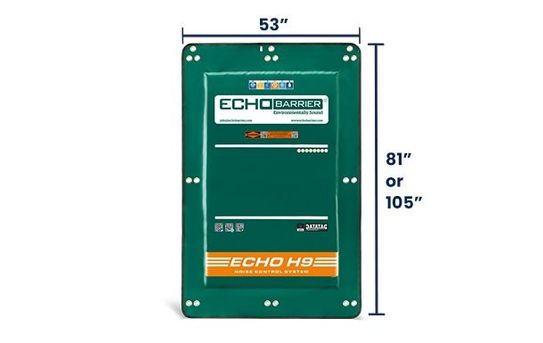

| Model Number | EB |
|---|---|
| Weight | 14 lbs. |
| Thickness | 3” |
| Length | 53” |
| Material | Noise-absorbent composite |
| Certified | ASTM E84, BS 7837-1996, IPX6/IPX9, BSEN 60068/2/1:2007, ISO 17025 tensile, BSEN 60529:1992 (dust) |
| Max Noise Reduction | Noise-absorbent composite |
Need Help?
Contact our Specialists at (888) 766-2616H9 Acoustic Fence

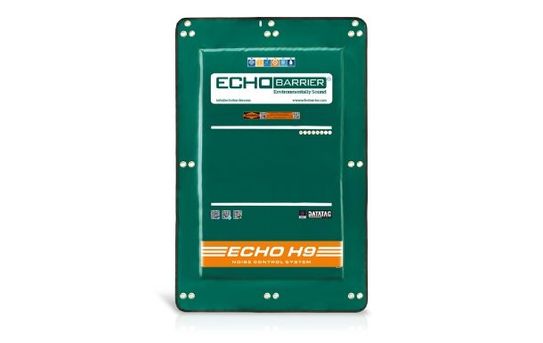

Write your reviewTemporary acoustic barrier for construction sites. Lightweight, fire- and water-resistant, with a noise- absorbent core. Hangs directly on perimeter fences.
Our location
Click to see our current shipping locations. This product might not be available on all warehouses.
Buy now pay later
Check out our online credit terms options and our super-fast approval process.
Price Match
With competitive pricing throughout the store, a price match guarantee that applies no matter how you choose to pay.
FAQ
Check out our frequently asked question session to learn more or to ask a question.
$288 90/ ea
$331 70
Save $42.80 (13%)
Overview
Jobsite Noise Control That Works

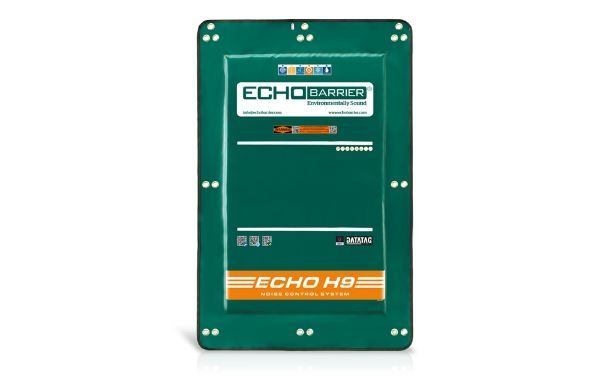

The Echo Barrier H9™ is a modular acoustic panel designed to hang on temporary fences and reduce sound from construction activities. It can cut noise levels by up to 43 dB in lab conditions and is built to perform in tough environments, including extreme heat, cold, rain, or dust. Installation takes just 30 seconds per panel using standard kits, and the panels roll up for easy transport.
Designed for Contruction Fence Compatibility

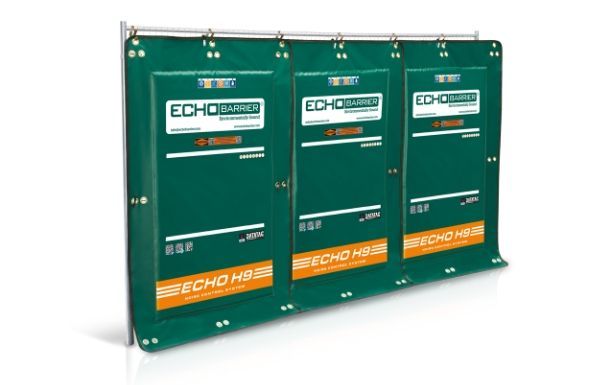

The Echo Barrier H9™ is compatible with most temporary fencing setups. Panels attach directly to fence rails or mesh using standard grommets and installation kits. When installed, the black mesh side should face the sound source for maximum absorption. At just 12 lb per panel, the H9 is easy to handle and roll up when not in use. Each panel includes reflective strips, hazard icons, and theft-prevention features like a data tag and RFID tracking.
Key Features of the Echo Barrier H9™ Acoustic Fence
Built for demanding jobsites, the Echo Barrier H9™ combines advanced noise control with the strength to withstand fire, water, and extreme weather.
High Noise Absorption:
|
Composite core absorbs sound energy while outer layers block and |
Durability:
|
Made with UV-stable, waterproof |
Design:
|
The modular system works with most temporary fencing and one person can install it in 30 seconds |
Fire-Rated, Waterproof & All-Weather Acoustic Panel
The Echo Barrier H9™ is built for environments where safety and compliance are non-negotiable. It’s fully fire-resistant, tested to ASTM E84 and BS 7837-1996 standards, making it suitable for use on jobsites that must meet strict flame spread and smoke development codes. It also has a waterproof yet breathable black mesh that faces the noise source. It allows sound waves to pass through and reach the noise-absorbent core, while keeping out rain and other moisture.
PRO TIP:
Reinforce Your Fence with Anchor Bases
Hanging multiple H9 barriers can increase wind load on your temporary fence line, especially in exposed or high-traffic areas. To prevent tipping and shifting, pair your acoustic setup with SONCO’s Anchor Bases. These compact, heavy-duty solutions keep your perimeter secure, rain or shine, so you can focus on noise reduction without compromising site safety. Add to cart today!
Resources
Your Guide to Construction Site Security |
|
Improve your construction site safety with our expert tips! Learn how to prevent accidents and theft with the right equipment. |
OSHA Inspections Made Easy: How to Prepare Your Jobsite |
|
Stay ahead of OSHA inspections with this comprehensive guide to jobsite compliance, safety preparation, and avoiding citations. |
