Yodock Barriers for Traffic Control and Perimeter Protection
Protect workers, guide traffic, and secure jobsites with Yodock barriers. Available in TL-2 and TL-3 configurations, Yodock barriers meet demanding roadway specifications while remaining easy to transport, deploy, and reuse.
Yodock barriers ship empty and are filled on-site, reducing transportation costs and simplifying installation. Once filled, they provide the ballast required for temporary traffic control while remaining reusable across multiple projects.
Yodock barriers are FHWA accepted, meeting state and federal requirements for their intended applications.
Yodock Water Barrier Key Features and Specifications
Yodock water barriers are commonly used as longitudinal channelizing devices to separate traffic lanes and protect pedestrian paths. Commonly used in highway projects, bridge construction, roadway detours, and work zone protection.
Yodock 2001
Yodock 2001MB
Yodock 2001M
Overview
The Yodock 2001 is the tallest model in the system and is commonly used on highway projects requiring higher containment and TL-3 performance.
The Yodock 2001MB is designed for projects requiring additional ballast weight while maintaining the same barrier footprint as the 2001M.
The Yodock 2001M provides a lower profile configuration while maintaining strong performance for temporary traffic control setups.
Height
46 in
32 in
32 in
Length
6 ft
6 ft
6 ft
Width
24 in
18 in
18 in
Capacity
180 gallons
100 gallons
100 gallons
Empty weight
130 lbs
85 lbs
75 lbs
Filled weight
1500 lbs
900 lbs
750 lbs
Certifications
MASH LCD Test Level 3
MASH LCD Test Level 2
MASH LCD Test Level 2
Everything You Need for Your Yodock Barrier System
From crash-rated barriers to replacement drain caps and fence toppers, SONCO stocks the components needed to keep your Yodock barrier system operating across multiple projects.

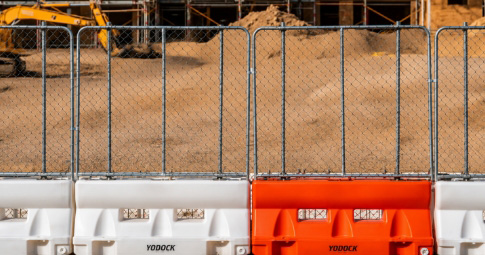

Fence toppers
Mount temporary fence panels above the barriers for secure perimeter protection.

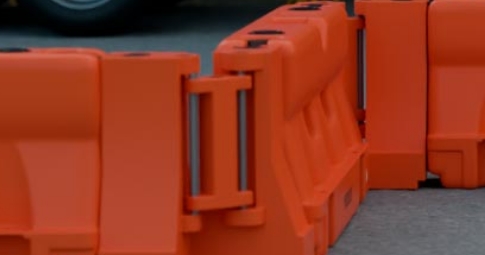

Corner units
Create pivot points that enable articulation between adjacent water barriers.

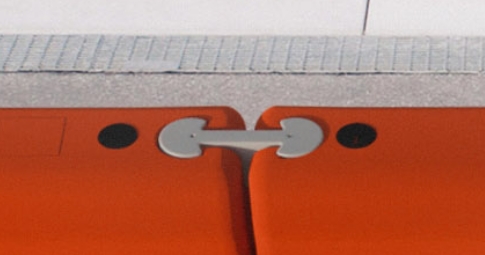

Coupler connectors
Join barrier runs with couplers, to prevent them from getting separated when not ballasted.

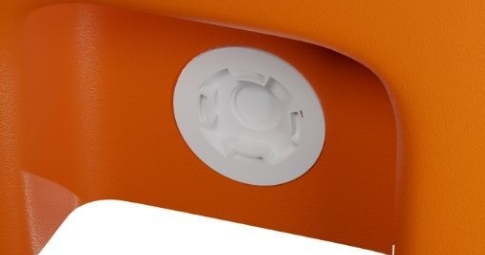

Drain caps
Keep barriers operating like new with replacement drain caps and plugs.

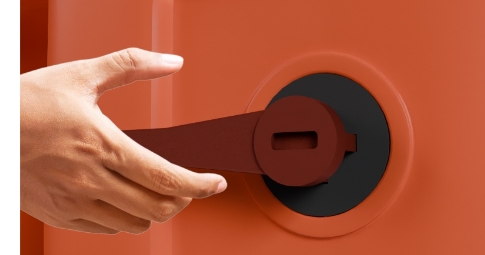

Yodock wrench
Designed to quickly remove drain caps and plugs during filling and draining.

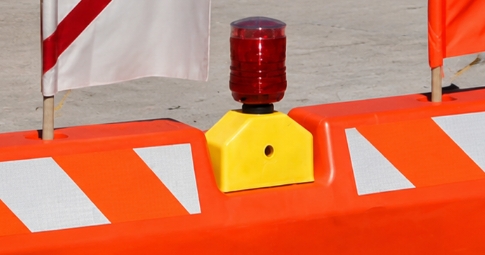

Barricade lights
Improve nighttime visibility for motorists and pedestrians with solar powered lights.
Yodock Water Barricades FAQs
1. Are Yodock barriers MASH-tested or FHWA-approved?
A: Yes. Yodock barriers are MASH-tested and are available in either TL-2 or TL-3 configurations depending on the specific model and setup. They are also FHWA-accepted when installed in approved configurations. Always verify project requirements with the governing agency or project engineer before installation.
2. How much does a Yodock water barrier weigh when filled?
A: The filled weight of a Yodock water barrier depends on the model. For example, the Yodock 2001 can reach approximately 1500 pounds when filled, while smaller models such as the 2001M and 2001MB range between 750 and 900 pounds when filled with water.
3. Are Yodock water barriers able to replace concrete barriers?
A: Yodock water barriers can replace concrete barriers in many temporary applications, particularly where ease of transport is a priority. They are commonly used for temporary traffic control, phased construction projects, and perimeter setups facing traffic. However, for certain high speed roadway lane delineation projects, concrete barriers may still be required depending on the bid specifications and agency standards.
4. What are Yodock barriers used for?
A: Yodock barriers are water-filled longitudinal channelizing devices used for traffic control, construction perimeters, roadway separation, and temporary security applications. A Yodock water barrier is commonly installed along highways, detour routes, bridge projects, and work zones to separate vehicles from workers and pedestrians.
5. Are Yodock barriers reusable?
A: Yes. Yodock barriers are designed for repeated use across multiple projects. Because they can be drained, transported, and redeployed, they are commonly reused on different construction or traffic control setups.
6. How do Yodock barriers connect together?
A: Yodock barriers connect through an integrated pin system that links each barrier unit to the next. This creates a continuous barrier line that can be used to guide traffic and maintain alignment across work zones or roadway projects.

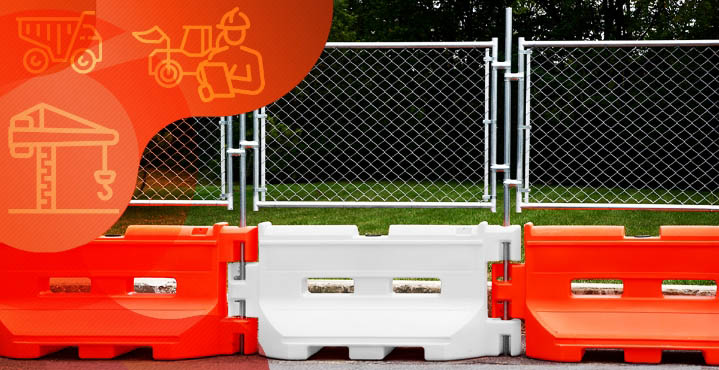

7. Can Yodock barriers be used with fence toppers?
A: Yes. Yodock barriers can support temporary fence topper systems to create secure construction perimeters. Once fitted with a fence topper, however, the barrier should no longer be used as a traffic channelizing device, as the fence attachment changes its intended application.
